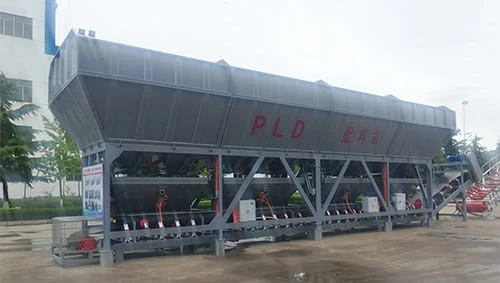

Large capacity aggregate batches The hopper has a large volume and a wide feeding width, reducing the pressure of loading on the loader. Lifting structure design, shortening the lifting bucket operation height, efficient. The hopper with multiple doors has no dead angle for material discharge, and the hopper capacity utilization rate is high. Non-stick board design, smoother material discharge. Aggregates mixing is provided with door opening adjustment, anti-jam and anti-splash devices, ensuring metering accuracy, safe and reliable. The gas circuit system is equipped with a centralized gas control cabinet, which is convenient for winter insulation, dust prevention of solenoid valves, and easy maintenance. |
![]() |
![]() |

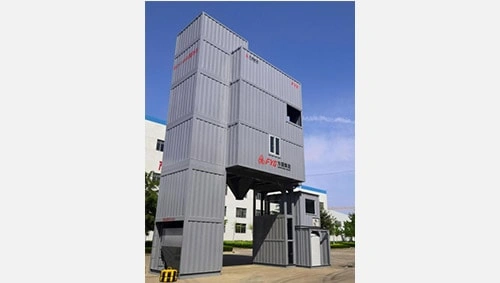

Modular box-type structure design Box structure, installation and removal is quick. No external high-altitude work and secondary relocation costs. No deep excavation of the foundation pit, the foundation construction is simple and fast, the construction cost is low, and it is convenient for land reclamation. |
|

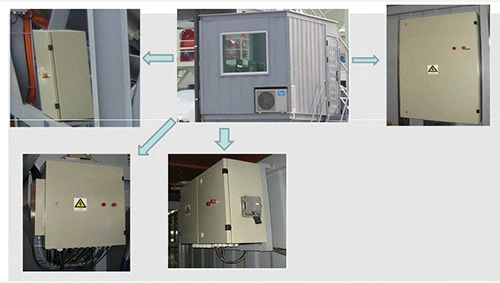

Bus-type split control system Bus-style one-wire wiring, simple and quick. Split control system for easy troubleshooting and maintenance. The control system is simple to operate, stable and reliable, and has the functions of supplementing the scale, deducting the scale, continuous production, intelligence, and central control. |
![]() |
![]() |

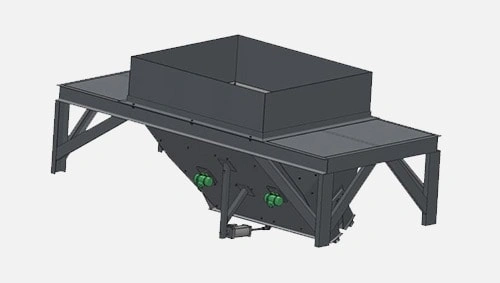

Aggregates temporary storage device Add a temporary storage device for at the bottom of the lifting bucket to improve the production efficiency of the mixing station. Non-stick board design, smooth material discharge without sticking. |
|
Safe and reliable vertical lifting feeding technology Double compaction steel wire rope vertical lifting, small footprint, flexible placement, few vulnerable parts. Improved bucket-type interval frequency conversion start and stop, low energy consumption. Anti-falling device, multiple protection mechanism, double braking, stable and reliable. |
![]() |
![]() |

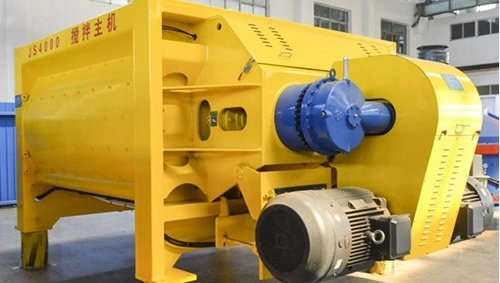

Performance superior mixing host Large capacity, dual motor drive, can overload by 10%; Anti-adhesion shaft technology, reduce the frequency and workload of host cleaning; Hydraulic unloading, powerful, low failure rate, multiple shaft end seals easy to install and remove, wear-resistant. |
|
Project |
Unit |
Parameter |
|
|---|---|---|---|
|
Ingredients machine model |
|
PLD6400QD-Ⅳ |
|
|
Doser hopper volume |
m3 |
4×25 |
|
|
Maximum weighing value of the aggregate scale |
kg |
4×5000 |
|
|
Cement scale maximum weighing value |
kg |
2400 |
|
|
Maximum weighing value of fly ash scale |
kg |
800 |
|
|
Water scale maximum weighing value |
kg |
1000 |
|
|
Liquid admixture scale maximum capacity |
kg |
100 |
|
|
Host unloading height |
m |
4.1 |
|
|
Complete machine quality |
t |
75 |
|
|
Dimensions (length x width x height) |
m |
47.8×18.6×19.2 |
|
|
Feeding method |
|
Tipping bucket |
|
|
Metrology accuracy |
Aggregates |
% |
±2 |
|
Cement |
% |
±1 |
|
|
Fly ash |
% |
±1 |
|
|
Water |
% |
±1 |
|
|
Liquid admixtures |
% |
±1 |
|
|
Notes: |
|||
