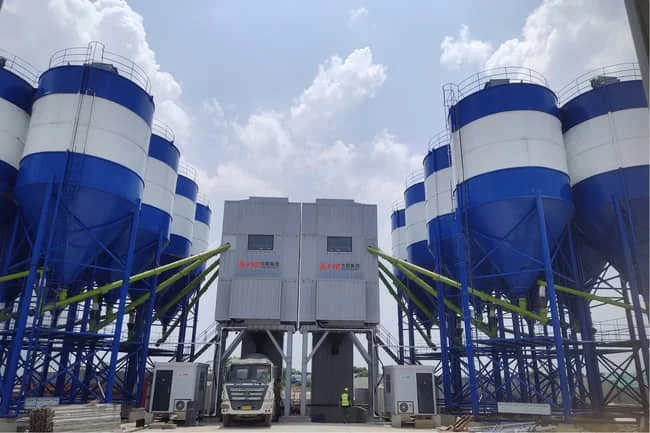

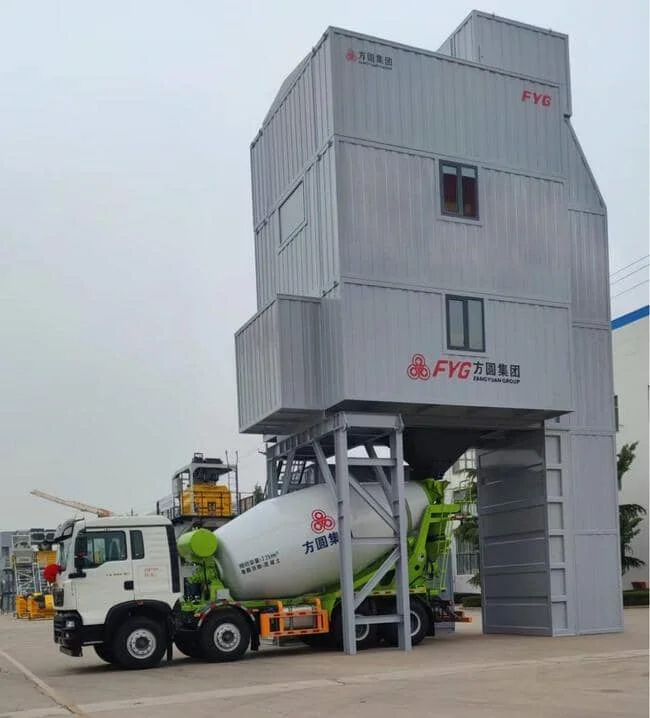

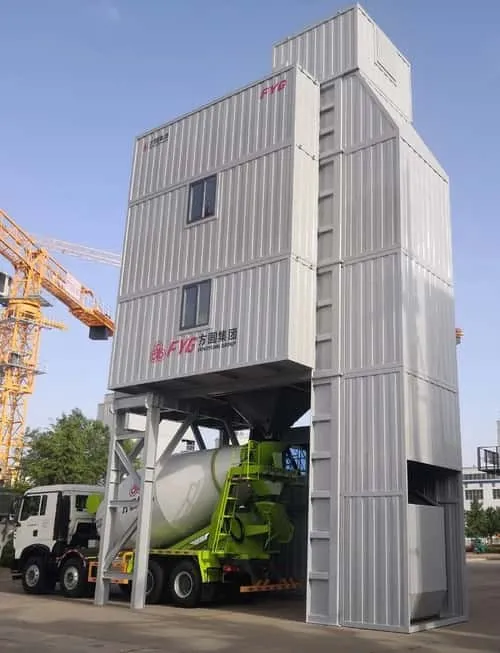

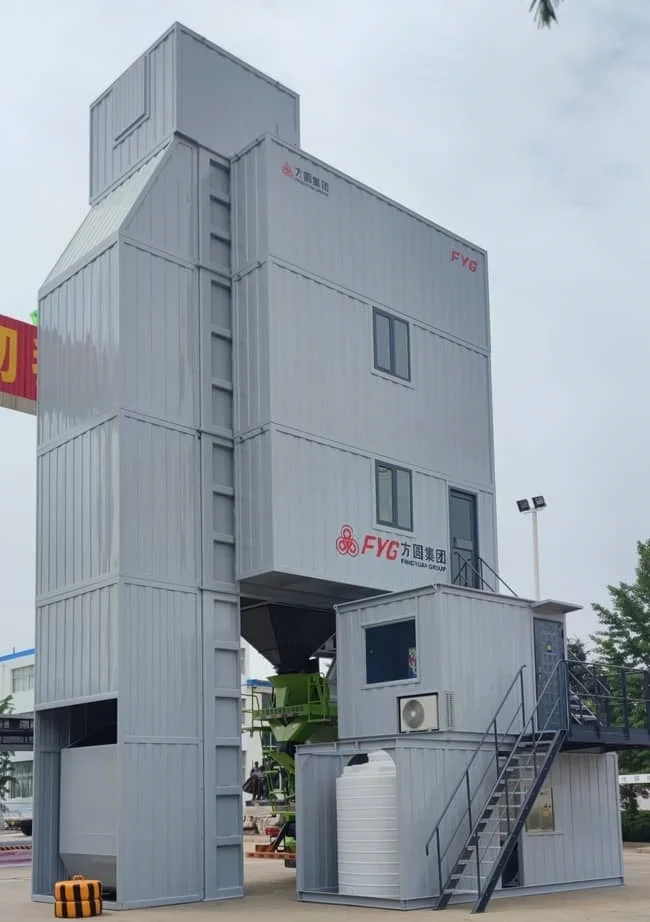

HZS270D Concrete Mixing Plant

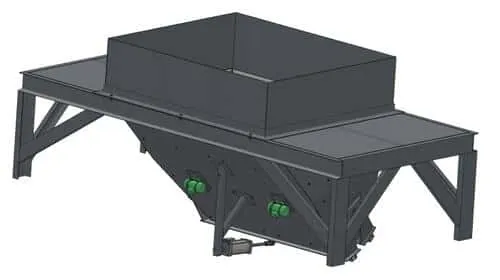

Large capacity aggregate batches

The hopper has a large volume and a wide feeding width, reducing the pressure of loading on the loader.

Lifting structure design, shortening the lifting bucket operation height, efficient.

The hopper with multiple doors has no dead angle for material discharge, and the hopper capacity utilization rate is high.

Non-stick board design, smoother material discharge.

Aggregates mixing is provided with door opening adjustment, anti-jam and anti-splash devices, ensuring metering accuracy, safe and reliable.

The gas circuit system is equipped with a centralized gas control cabinet, which is convenient for winter insulation, dust prevention of solenoid valves, and easy maintenance.

Large capacity aggregate batches

The hopper has a large volume and a wide feeding width, reducing the pressure of loading on the loader.

Lifting structure design, shortening the lifting bucket operation height, efficient.

The hopper with multiple doors has no dead angle for material discharge, and the hopper capacity utilization rate is high.

Non-stick board design, smoother material discharge.

Aggregates mixing is provided with door opening adjustment, anti-jam and anti-splash devices, ensuring metering accuracy, safe and reliable.

The gas circuit system is equipped with a centralized gas control cabinet, which is convenient for winter insulation, dust prevention of solenoid valves, and easy maintenance.

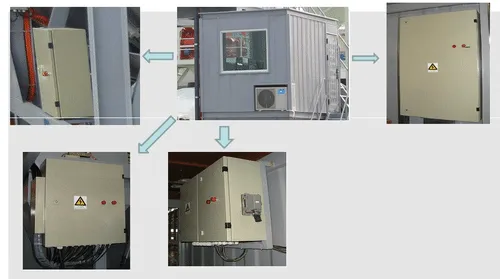

Bus-type split control system

Bus-style one-wire wiring, simple and quick.

Split control system for easy troubleshooting and maintenance.

The control system is simple to operate, stable and reliable, and has the functions of supplementing the scale, deducting the scale, continuous production, intelligence, and central control.

Aggregates temporary storage device

Add a temporary storage device for aggregate at the bottom of the lifting bucket to improve the production efficiency of the mixing station.

Non-stick board design, smooth material discharge without sticking.

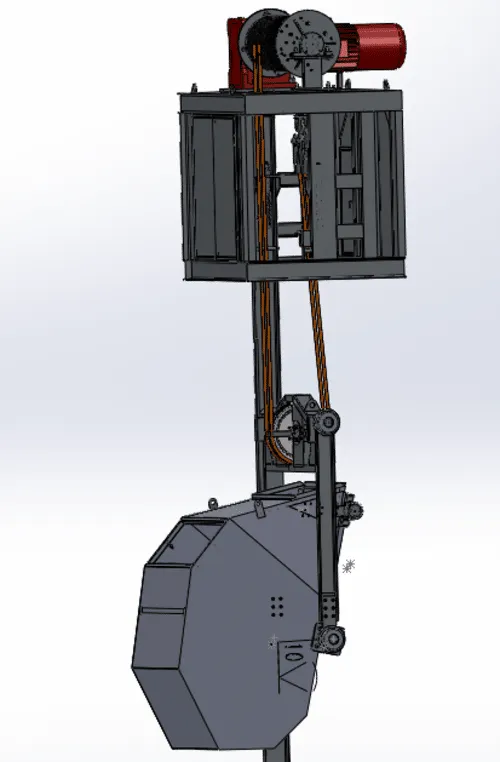

Safe and reliable vertical lifting feeding technology

Double compaction steel wire rope vertical lifting, small footprint, flexible placement, few vulnerable parts.

Improved bucket-type interval variable frequency start and stop, low energy consumption.

Anti-falling device, multiple protection mechanism, double braking, stable and reliable.

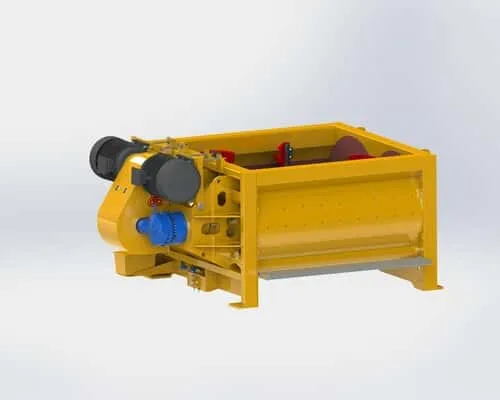

Superior performance of the mixing host

Large capacity, dual motor drive, can overload by 10%;

Anti-adhesion shaft technology, reduce the frequency and workload of host cleaning;

Hydraulic unloading, powerful, low failure rate, multiple shaft end seals, quick installation and removal, wear-resistant.
