▲ Integrated integrated design, small footprint.
▲ Easy to maintain and low operating costs.
▲ Quick and easy installation, convenient for transfer.
|

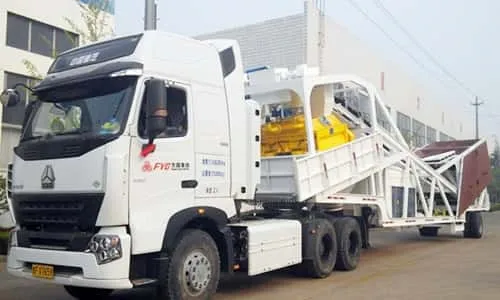

Convenient and quick transition Towable design, quick disassembly and assembly for easy transportation and quick transfer. The entire station structure is compact, with a small footprint, simple foundation construction, and low operating costs. |
![]() |
![]() |

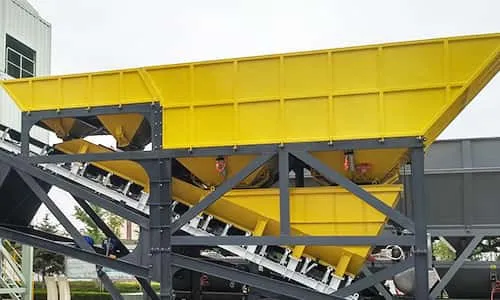

Aggregates feeding system Double-door structure, smooth material discharge and effective use of bucket capacity; Adjustment device for opening, meeting the requirements of small range and precise measurement of aggregate; Anti-Carmen, splash guard device, to prevent carmen and material splashing. |
|

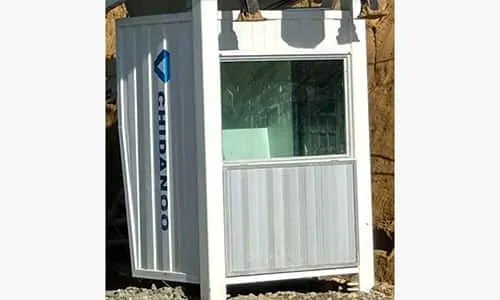

Control system Computer control, simple operation, stable performance; Imported electrical components, long life, low failure rate. |
![]() |
![]() |

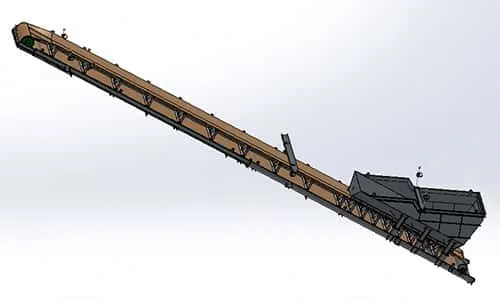

Aggregates conveying and weighing Suspended belt scale, accurate in measurement, simple in installation and maintenance; The belt is made of herringbone, safe and efficient. |
|
Superior performance of the mixing host Large capacity, dual motor drive, can overload by 10%; Anti-stick shaft technology, reduce the frequency and workload of host cleaning; Hydraulic unloading, powerful, low failure rate, multiple shaft end seals, quick installation and removal, wear-resistant. |
![]() |
![]() |

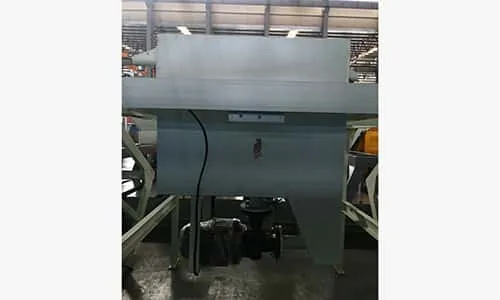

Water weighing Pressurized drainage technology, which discharges quickly and can reduce the workload of cleaning the mixing drum. Three-point support structure, stable and accurate. |
| Project | Unit | Parameter | |
|---|---|---|---|
| Storage bin volume of the dosagemachine | m³ | 3×5 | |
| Maximum weighing value of the aggregate scale | kg | 3000 | |
| Cement scale maximum weighing value | kg | 1000 | |
| Maximum weighing capacity of the water scale | kg | 400 | |
| Liquid admixture scale maximum weighing value | kg | 40 | |
| Host unloading height | m | 3.8 | |
| Complete machine quality | t | 30 | |
| Dimensions (length x width x height) | m | 25×8×16 | |
| Feeding method | Belt type (person-shaped belt) | ||
| Measurement accuracy | Aggregates | % | ±2 |
| Cement | % | ±1 | |
| Water | % | ±1 | |
| Liquid admixtures | % | ±1 | |
| Note: | |||
| 1. Cement bin and screw conveyor are optional items, and their capacity and size can be matched according to actual needs. | |||
| 2. Dimensions and weight are for reference only, subject to the actual configuration. | |||
