▲ Simple and quick installation.
▲ High degree of integration, quick transition, fast production.
▲ Simple foundation, low construction cost.
▲ Low maintenance and transport costs.
|

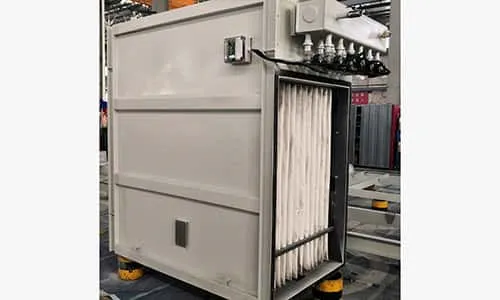

Large area dust removal Large dust removal area, environmentally friendly and pollution-free. |
 |
 |

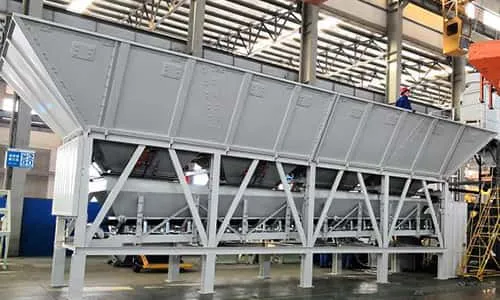

Large capacity mixer Larger storage volume and feed width, reducing the pressure of loading on the loader; Double-door mechanism, smooth material discharge, and effective use of bucket capacity; Throttle control, anti-sticking, anti-splash device, high metering accuracy. Good safety. |
|
Precise water metering Water metering is carried out by electromagnetic flow meters, which have good continuity, stable performance and high accuracy. |
 |
 |

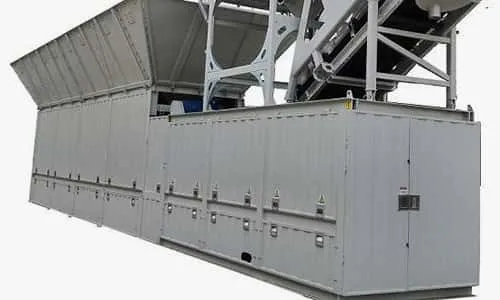

Environmental packaging Since the opening of the closed structure, it is environmentally friendly and pollution-free; The packaging board is made of pressed steel plate welding, no secondary relocation fee. |
|

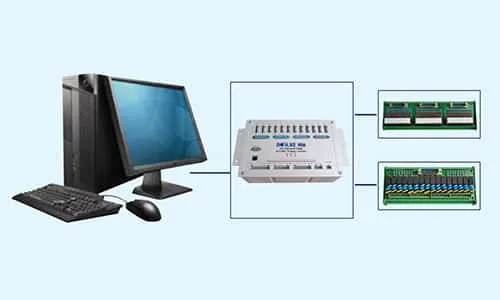

Intelligent control Adopt instrument + PLC intelligent control, the system is stable, the metering accuracy is high, and the operation is simple. |
 |
 |

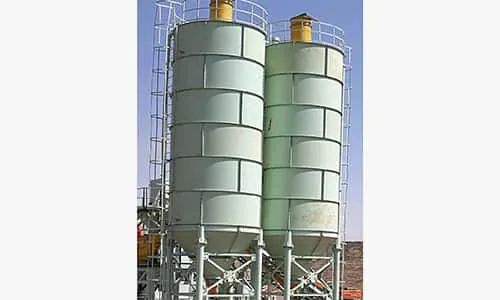

Pre-cast concrete silo Sheet-type structure, small transportation dimensions, can meet the requirements of container transportation. |
| Project | Unit | Parameter |
|---|---|---|
| Model | PLZ80 | |
| Volume of the aggregate bin | m³ | 4×25 |
| Aggregates scale | kg | 2400～9600 |
| Belt conveyor belt width | mm | 800 |
| Cement scale maximum weighing value | kg | 2400 |
| Conveyor capacity of screw conveyor | t/h | 90 |
| Water supply flow rate | m³/h | 46 |
| Unloading height | m | 3.8 |
| Air compressor exhaust volume | m³/min | 1 |
| Dust collection device | m2 | 54 |
| Control room | m2 | 4 |
