1. Flat top design, beautiful appearance;
2. It can flexibly achieve a variety of variable arm types, meeting the different needs of users;
3. Large scope of work, many methods of work, strong adaptability;
4. The hoisting, slewing, luffing and jib-booming mechanisms are highly compatible with the TC5510 tower crane.
|
Lifting arm Multiple lifting arm length combinations to meet the different needs of users. The structure of the lifting arm is a variable cross section, which reduces the self-weight of the structure and has a long service life. |
 |
 |

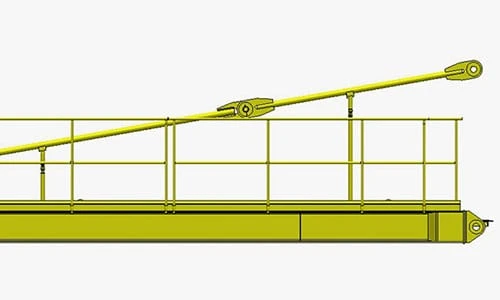

Dismantle safely and conveniently The lifting arm pull plate and the balance arm pull rod are designed with installation brackets, making installation and removal safer and more convenient. |
|
Unique design of the lifting beam The lifting beam is designed with a safety plug, ensuring a safe and reliable lifting process. |
 |
 |

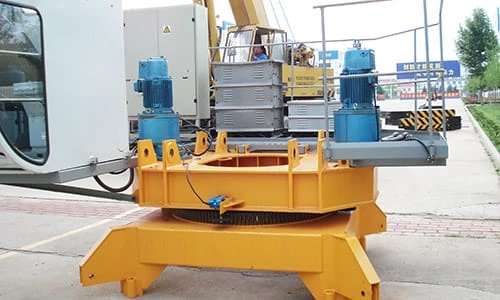

Use performance more reliable The rotating tower body and the upper support are designed to be connected by a pin shaft, ensuring more reliable performance. |
|
Lifting gear reducer The lifting reducer is a four-axis transmission, the lifting mechanism drum is designed to be thick and short, extending the service life of the steel wire rope. |
 |
| Name | Unit | Parameter | ||||||
|---|---|---|---|---|---|---|---|---|
| Rated Lifting Moment | kN.m | 630 | ||||||
| Maximum lifting torque | kN.m | 870 | ||||||
| Maximum lifting capacity | t | 6 | ||||||
| Work range | m | 2～55 | ||||||
| Lifting capacity at maximum working reach | t | 1 | ||||||
| Lifting height | m | odds | Independent | Attaching | ||||
| 2 | 40 | 140 | ||||||
| 4 | 40 | 70 | ||||||
| Lifting performance | odds | 2 | 4 | |||||
| Lifting speed | m/min | 80 | 40 | 40 | 20 | |||
| Lifting capacity | t | 1.5 | 3 | 3 | 6 | |||
| Rotating speed | revolutions per minute | 0.62 | ||||||
| Lifting speed | m/min | 40.5/20 | ||||||
| Lifting speed | m/min | 0.42 | ||||||
| Tower section size | m | 1.7×1.7×2.48 | ||||||
| Counterweight | t | 13.9 | ||||||
| Working temperature | ℃ | -20～+40 | ||||||
| Total machine power | kW | 34.7 (excluding lifting motor) | ||||||
