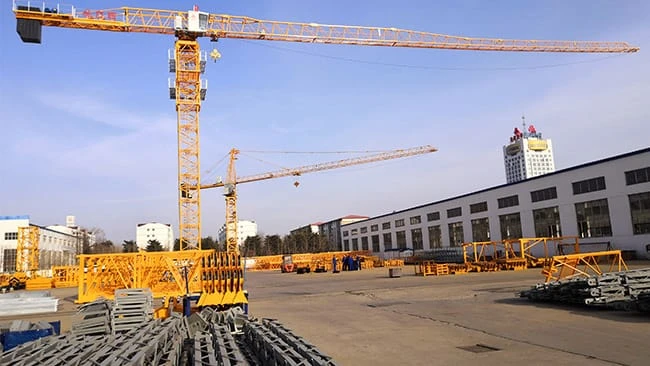

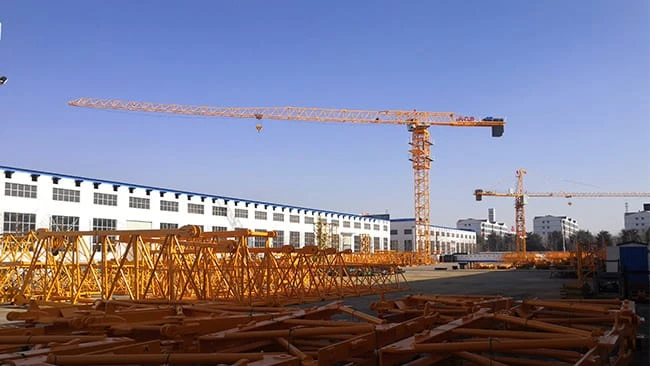

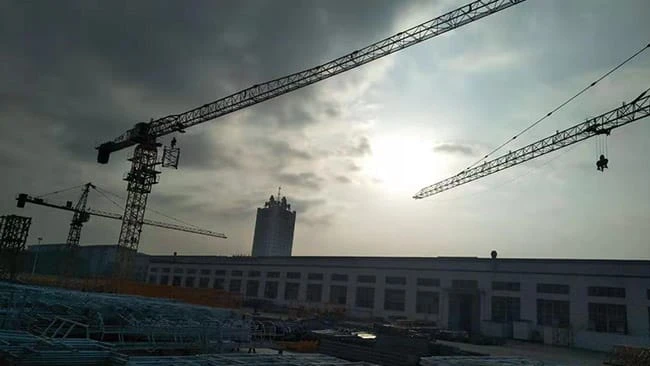

QTZ100(PT6013-6t) Tower Crane

1. The lifting arm and counterbalance arm are designed as a single unit, canceling the transition section, reducing the lifting unit, and making the installation simple and convenient;
2. The bottom of the tower body adopts the design of reinforcing section, with large independent lifting height;
3. Adopting large-diameter external tooth engaging slewing bearing, more stable slewing;
4. Various combinations of arm lengths can meet different needs of users.

INQUIRY NOW CONTACT US

Product Highlights

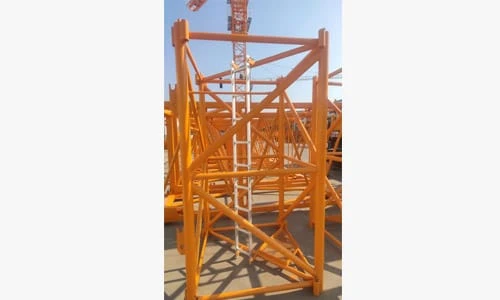

Standard section Aluminum alloy ladder is used in the standard section, which has strong structure, anti-corrosion and wear-resistant without rust; the connection sleeve is connected with high strength bolts of Dacromet process.
	Lifting arm The lifting arm structure is of variable cross section, and the optimized structure is stressed; the lifting arm can be set to 60 meters, 55 meters, 50 meters, 45 meters, 40 meters, etc. according to the user's needs.

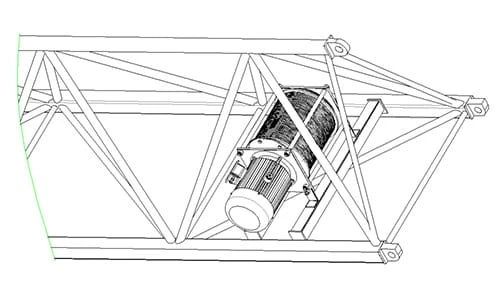

Lifting mechanism The lifting mechanism adopts variable frequency speed regulation and speed closed-loop control, with smooth starting and braking. The lifting reducer is designed as a four-axis type, with a thick and short drum, which improves the service life of the steel wire rope.
	Luffing mechanism The luffing mechanism of the small car is characterized by compact structure, zero-speed braking, more stable starting speed, low noise, etc.
Rotating mechanism Two sets of slewing mechanisms are symmetrically arranged, and the slewing motor adopts frequency conversion motor, which has the functions of quick braking, spot operation, and hook anti-sway.

Technical Parameters

Name		Unit	Parameter
Rated Lifting Moment		kN.m	1000
Maximum lifting capacity		t	6
Work range		m	2.5～60/55/50/45/40/35
Lifting capacity at maximum working reach		t	1.3
Lifting height		m	Multiple		Independent		Attaching
			2		41		180
			4		41		90
Lifting performance	Multiple		2			4
	Lifting speed	m/min	0～40	0～80		0～20		0～40
	Lifting capacity	t	3	1.5		6		3
Rotating speed		revolutions per minute	0～0.62
Lifting speed		m/min	0～40/20
Lifting speed		m/min	0.35
Working temperature		℃	-20～+40
Total machine power		kW	37.3 (excluding lifting motor)
