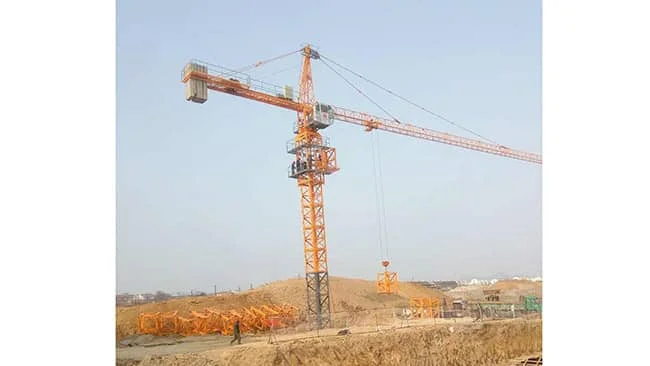

1. When the bottom of the tower is reinforced, the independent lifting height can reach 40 meters;
2. The lifting mechanism motor is a three-speed motor with a coarse short-type drum design, multi-speed transmission, and simple operation and maintenance;
3. The double-rotation mechanism is symmetrically arranged, and the tower crane is more stable;
4. The lower chord of the boom is made of pointed angle steel pipe, which is light in self-weight.
|

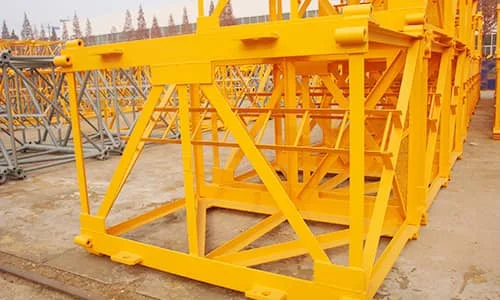

Standard section The standard section main limb is made of large angle steel, the structure is strong, and the whole machine is stable. |
 |
 |

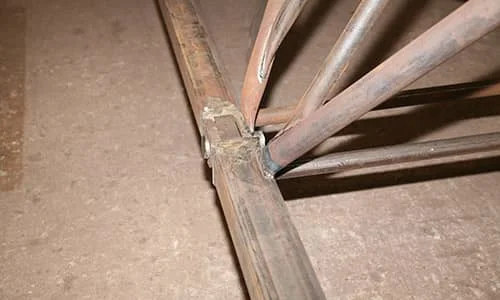

Lifting arm The boom's lower chord is made of pointed-angle square tube to enhance the safety of the trolley. |
|

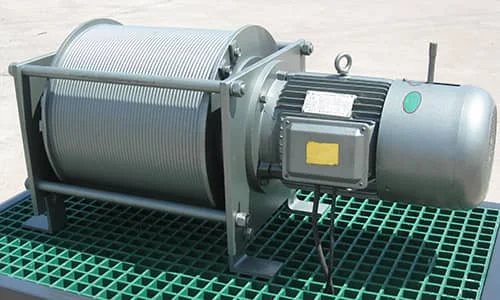

Lifting mechanism The lifting mechanism adopts a four-axis reducer, the drum is thick and short, the lifting is stable, and the service life of the steel wire rope is improved. |
 |
 |
Rotating mechanism The slewing mechanism adopts a symmetrical arrangement of double planetary gear reduction machine, which has stable slewing and small impact. |
|
Luffing mechanism The luffing mechanism is equipped with a planetary gear reducer set inside the drum, which is compact in structure and convenient to install. |
 |
| Serial number | Name | Unit | Parameter | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Lifting height | m | Independent | 40 (36) | |||||
| Attaching | 120 | ||||||||
| 2 | Rated Lifting Moment | kN·m | 630 | ||||||
| 3 | Maximum lifting capacity | t | 5 | ||||||
| 4 | Work range | m | 2.5～50 | ||||||
| 5 | Lifting performance | Multiple | 2 | 4 | |||||
| Lifting capacity | t | 2.5 | 2.5 | 1.25 | 5 | 5 | 2.5 | ||
| Lifting speed | m/min | 6 | 30.5 | 61 | 3 | 15 | 30.5 | ||
| 6 | Rotating speed | revolutions per minute | 0.55 | ||||||
| 7 | Lifting speed | m/min | 22/35 | ||||||
| 8 | Lifting speed | m/min | 0.6 | ||||||
| 9 | Maximum turning radius | m | 51.2 | ||||||
| 10 | Counterweight | t | 10.6 | ||||||
| 11 | Working temperature | ℃ | -20～40 | ||||||
| 12 | Total power of the whole machine | KW | 21.6 (excluding lifting motor) | ||||||
