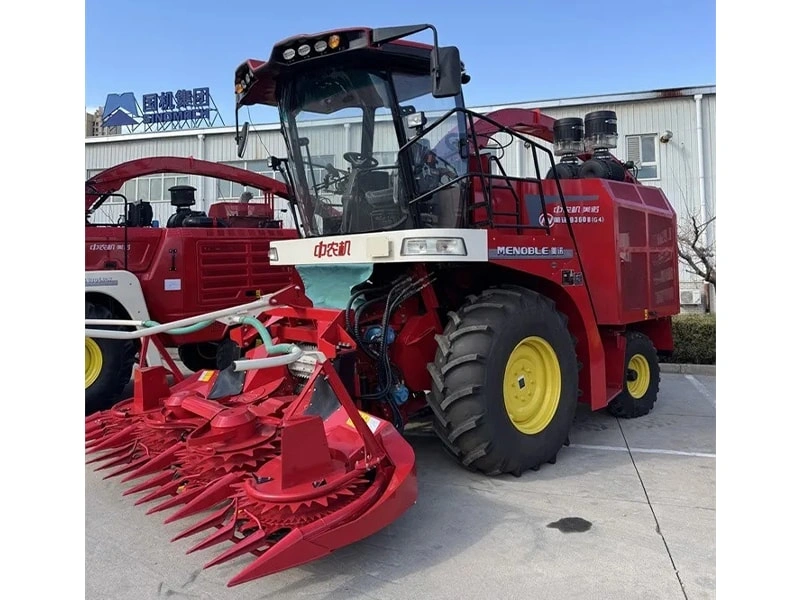

1, 3.6 meters folding cutting table (optional 4.5 meters folding cutting table), smooth crop, high efficiency, not easy to block, good reliability, full hydraulic drive, can realize forward and reverse a key switch, automatically clean up the blockage.
2、Feed cutting length 10-22mm (adjustable per millimeter), hydraulic fast reverse.
4、Drum electronically controlled automatic knife sharpening, no need for manual sharpening, safe and fast, reduce power consumption and fuel consumption, improve cutting effect and harvesting efficiency.
5、Control system is modularized, integrated and intelligent, equipped with high-performance liquid crystal display, parameter monitoring and adjustment is convenient and intuitive.
6、Equipped with 26-point automatic lubrication system, real-time lubrication of key bearings, improve machine reliability and harvesting efficiency.
7、All hydrostatic drive stepless speed change system ensures the machine traveling state flexible.
8, 460 horsepower national four Yuchai engine, strong power, reliable and durable, efficient fuel saving, low maintenance costs.
| Machine model number | 9360B |
| Dimensions (m) (in transport condition) | 8.09×2.9×3.8 |
| Overall quality(kg) | 11700 |
| Engine power (hp) | 460 |
| Engine output speed (r/min) | 2200(2000@400bph) /2100 |
| High-statured cutting table width (m) | 3.6/4.5 |
| Cut height (cm) | ≤12 |
| Feed rate (T/h) | ≤70 |
| Chopped blade structure type | Curved knife combination (20 pieces) |
| Cut length (mm) | 10-22mm (adjustable per mm) |
| throw angle range (°) | ±110 |
| Launch height (m) | 4.8~5.8 |
| Grain crushing device | Standard equipment |
