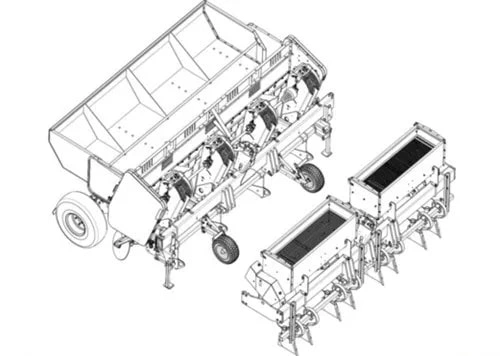

1. Mechanical part ●Matching power above 140 horsepower, suspension points suitable for Class II and Class III tractors; ●Adopted split structure, in the case of no fertilization, the fertilization mechanism can be removed, and the separate seeding can be carried out; ●The whole machine is made of Q355B high-performance steel, ensuring sufficient toughness, good fatigue resistance, and improved load-bearing capacity, extending the service life; |
![]() |
![]() |
●Track width of 3.4m or 3.6m, suitable for potato drilling operations with row spacing of 85cm or 90cm, respectively; ●Adaptable to potato drilling with a speed of ≥7.5Km/h (row spacing of more than 20cm), high operational efficiency; ●The ground wheels are divided into two groups, left and right, which transmit power to the side drive sprocket through the transmission shaft, equipped with a one-way clutch, ensuring that the drilling machine can still operate normally when one group of ground wheels slip; |
|
● Row spacing, fertilizer quantity regulating sprocket is easy to disassemble and assemble, convenient to adjust, tensioning structure is reasonable, smooth rotation, no tooth jumping; ● Seed box is enlarged, planting quantity is 1500Kg, reducing the number of re-planting within the unit area, improving work efficiency; fertilizer type, fertilizer box is enlarged, fertilizer carrying capacity is 750Kg, reducing the number of re-fertilization within the unit area, improving work efficiency; fertilizer type is equipped with a footboard, convenient for manual re-fertilization; |
![]() |
![]() |

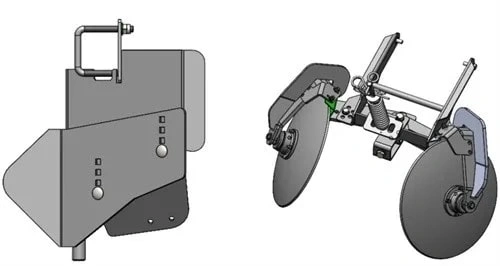

●Sowing depth, increase 60mm adjustment. ●Potato row size can be adjusted by disk angle, spacing adjustment, convenient adjustment, with imitation pressure spring, to ensure that the amount of earth is consistent; |
|

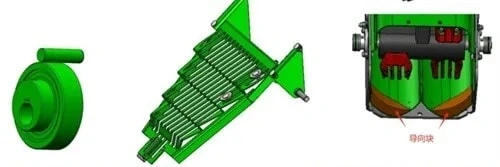

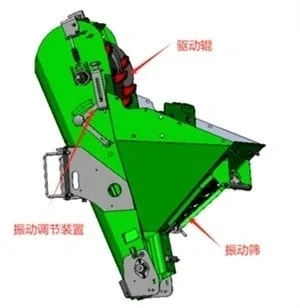

●The diameter of the driving roller of the sowing unit is increased, the tilt angle is increased, and the high-frequency motor vibration mode is adopted to ensure rapid and uniform sowing; ●The structure of the guide seed pipe in the sowing unit is improved to increase the bottom guidance, so that the seeds flow to the center of the ridge; the fixed belt of the seed bowl adopts rubber clamp line material, which is smooth and has high tensile strength; ●The vibration motor is equipped with a micro-adjustment device, which is convenient for controlling the vibration amount; ●The vibrating screen is equipped with an automatic seed delivery function, which saves labor; |
|
![]() |

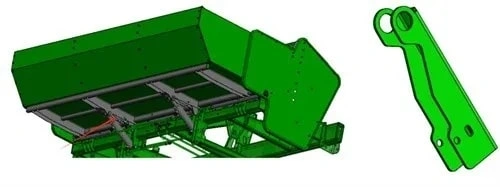

●It is composed of stainless steel fertilizer box, stirring dragon, guide groove, fertilizing furrow tooth, transmission parts, etc. The inner and outer double stirring dragon type fertilizing mechanism has a large fertilizing amount, convenient adjustment, low failure rate, and no fertilizing blockage phenomenon (the inner stirring dragon can crush the compacted fertilizer block, which is better); ●The fertilizing furrow tooth of Beolota&AMA company is customized, compared with other domestic manufacturers, the structure is wider, the furrow effect is better, and the strength is higher. The fertilizing furrow tooth is distributed on both sides of the sowing furrow tooth, realizing double-sided deep fertilization, avoiding the burning of seeds caused by the mixed application of seeds and fertilizers; |
|
2. Hydraulic part ●The seed box is equipped with hydraulic lifting cylinders, and the oil inlet of the cylinders is equipped with throttle screws, which reduce the height of seed loading and reduce the difficulty of manual seed loading, and the tilt angle of the seed box is controllable by the driver to ensure uniform supply of seed potatoes; ●Equipped with cylinder locks, during transportation, the cylinder locks are lowered to prevent cylinder pressure from dropping; during the seeding process, the cylinder locks are folded up. |
![]() |
![]() |

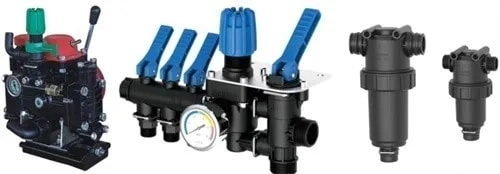

3. spray part. ●Standard MB230/2.5 type diaphragm pump, directly connected to the tractor PTO, ensures stable pressure of the spraying system, sufficient return water of the mixing and stirring system, and more uniform stirring; ●The spraying system can achieve a system safe working pressure of 3 to 4 bar, covering the optimal working pressure of the nozzle; ●Standard Licheng three-way water control valve, with pressure regulation and stable pressure function, can achieve segmented balanced pressure regulation, and equal spraying; ●The entire spraying system is equipped with two stages of filtration, achieving efficient filtration of impurities, and quick cleaning of impurities. |
|

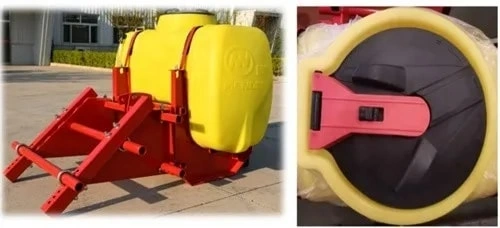

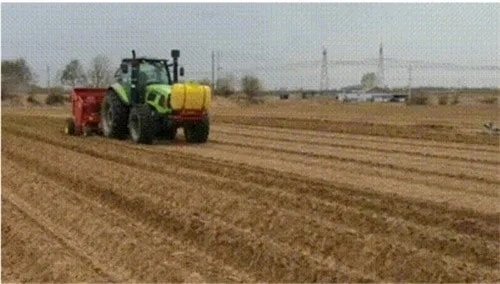

●Standard 400L high-density polyethylene chemical tank, with a new type of tank cover, the tank cover is convenient to open and close, and water can be added quickly from the outside; ●The chemical tank is hung in front of the tractor's weight position, and the universal chemical tank bracket can match the front weight of various types of tractors, eliminating the trouble of on-site modification for users, |
![]() |
![]() |

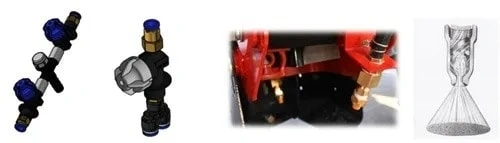

●Standard equipment includes PT136305 (PTC cross-type water distributor), PT136300 (PTC one-to-two water distributor), with pressure regulating and stabilizing functions, which can achieve section-by-section balanced pressure regulation, and equal spraying; ●Standard equipment includes German imported Lenzina copper conical universal nozzle, one nozzle is placed inside the sliding knife type furrow openers, and the other is at the seeding unit's seeding position, which can spray pesticides simultaneously on the two sides of the V-shaped furrow and the surface of the seed potatoes, ensuring even spray distribution; |
|

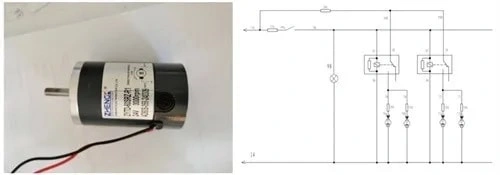

4. Electrical Part ● Standardized ZYTD-60S-1 type carbon brush motor, suitable for voltage range 12 ~ 24V, meets the majority of tractors on the market, strong adaptability; ● Circuit setting voltage regulator, fuse, to ensure the normal operation of the electrical system. |
![]() |
| Model | 2CM-4EF type potato planter |
| Structural pattern | Three-point suspension |
| Dimensions: length x width x height mm | 2600×3900×2000 |
| Structural mass (kg) | 2600 |
| Matching power (kW) | ≥103 (140 horsepower) |
| Line spacing (mm) | 900/850 |
| Number of rows in the work | 4 |
| Sowing type | Belt-type spoon |
| Number of seeders | 4 |
| Type of sludge remover | Spiral type |
| Number of septic tanks | 4 |
| Type of furrower | Sowing: knife type; manuring: tooth type. |
| Number of furrows | Sowing: 4; Fertilizing: 8 |
| Type of plow | Disc-shaped |
| Number of plowshares | 4 |
| Type of earth wheel | Rubber wheel |
| Earth wheel diameter | 760 |
| Medicine box volume (L) | 400 |
