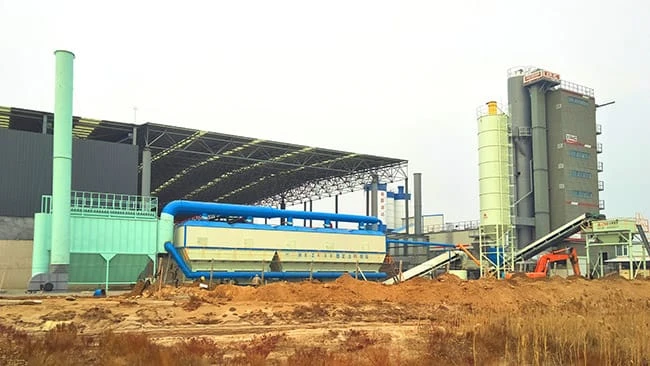

HBWBZ500-D Stabilized Soil Mixing Plant

Aggregates feeding system

Large volume (15m³), block-style combination.

Obtain the national manufacturing measuring instrument license, high accuracy.

Optional mechanical arch breaking.

Powder metering system

Adopt the reducing weight scale, direct falling cement supply technology, and the metering accuracy is high.

The whole process is in a fully sealed state, no pollution, no waste.

Mixing host

Extended mixing drum, high-speed mixing, uniform and efficient.

Mixing blades, mixing arms ensure the production of more than 200,000 tons of finished products.

Finished Product Silo System

Adopted pneumatic double door four-cylinder structure to ensure the smooth production process.

Equipped with a movable steel device to prevent segregation, ensuring that the finished material does not separate as it falls

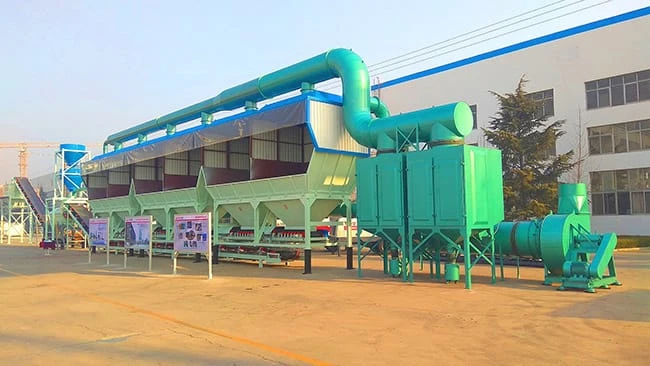

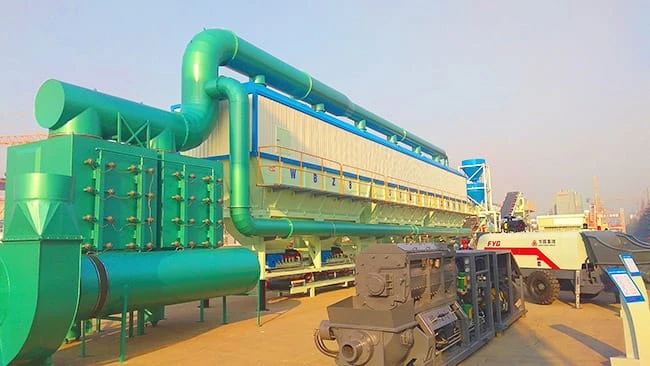

Environmental dust removal system

Precise dust removal from the source of dust generation;

Infrared sensor intelligent recognition of material feeding, reducing the overall station air volume demand;

The whole station dust emission concentration ≤ 100 mg/m³.

Electrical control system

Main electrical components are made by international brands, reliable and long-lasting.

Japan Mitsubishi programmable logic controller (PLC), will not encounter the phenomenon of computer freezing.

LCD touch screen, no need for professional computer knowledge to operate. It has a low-level alarm function to ensure the smooth progress of production.

It has a one-key increase and decrease function for productivity, which is convenient to select a reasonable productivity.
